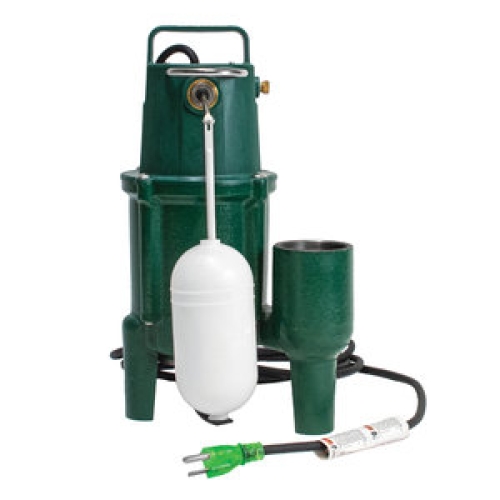

The Model 802 grinder pump is designed for homeowners who need a dependable and cost‑effective step up from a standard sewage ejector pump. Built for demanding sewage applications, the 802 features a 1/2 hp shaded‑pole motor housed in oil‑filled, cast iron construction, ensuring excellent heat dissipation and long‑term durability in harsh environments. With a 2 Inch discharge and 115 V operation, this grinder is optimized for residential use without the higher cost typically associated with commercial‑grade grinder systems. At the heart of the 802 is Zoeller's industry‑proven Tri‑Slice® cutter technology, which delivers over 250000 cuts per minute, reducing solids down to 1/8 in for smooth downstream flow and reduced risk of clogs. The pump includes Zoeller's integral automatic switch, providing dependable operation without external controls and comes equipped with the Zoeller LED plug, allowing users to verify power status at a glance - an added layer of convenience and confidence. With performance capabilities reaching up to 29.5 ft of total dynamic head and flow rates of up to 48 gpm, the Model 802 is engineered to perform reliably even under heavy load. Like all Zoeller products, it is 100% factory tested, delivering verified performance straight out of the box and backed by a 3 years warranty for long‑lasting peace of mind. When you need a rugged grinder pump that combines powerful cutting action, proven reliability, and ease of installation, the Model 802 stands ready to deliver - trusted. Tested. Tough®.
Zoeller® Grinder Pump, Submersible, 48 gpm Flow Rate, 2 Inch Outlet, Vortex Impeller, 3450 rpm Speed, 115 V, 9.6 A, 60 Hz Frequency, 9 ft Cord, 130 deg F, Cast Iron, Dimensions: 13-15/16 Inch H x 9-1/16 Inch W, Includes: LED Plug, Warranty: 3 Year Limited
| Type | : | Submersible |
| Flow Rate | : | 48 gpm |
| Outlet Size | : | 2 in |
| Impeller Type | : | Vortex |
| Speed | : | 3450 rpm |
| Voltage Rating | : | 115 V |
| Amperage Rating | : | 9.6 A |
| Frequency Rating | : | 60 Hz |
| Cord Size | : | 9 ft |
| Temperature Rating | : | 130 deg F |
| Material | : | Cast Iron |
| Dimensions | : | 13-15/16 in H x 9-1/16 in W |
| Includes | : | LED Plug |
| Warranty | : | 3 Year Limited |
- 115 V automatic grinder pump for use in sewage ejector applications
- 1/2 hp, oil-filled motor and cast iron motor housing for optimal heat dissipation
- 100% factory tested
- Oil-filled motor optimizes heat dissipation which prevents the pump from overheating during extended use occurrences
- Automatic pump with a time-tested, reliable, preset, built-in snap action switch that makes for easy installation
- Proven Tri-Slice® cutter technology - three independent cutting channels provide over 250000 cuts per minute
- Stainless steel float guard that prevents material or debris from collecting on the float ensuring proper operation every time
- Solid, buoyant, polypropylene float to eliminate the possibility of water infiltration allowing the float to remain buoyant and functional at all times
- Powder-coated epoxy finish provides corrosion-resistance and extends the life of the pump in harsh environments
- Stainless steel screws, switch arm, guard, handle and hardware to prevent rust and corrosion over the life of the pump
- 100% factory tested - every pump is submerged in water and tested at the factory to ensure that it performs as expected when you receive it
- Comes with a 3 years limited warranty giving you protection over your investment and the peace of mind you expect in a quality product
